Whether you’re a DIY enthusiast, a professional mechanic, or just someone who wants to keep their car tires inflated, owning an air compressor can be a game changer. With its ability to power pneumatic tools, inflate tires, and more, an air compressor is a versatile tool that can save time and effort.
I’ve used some of the best air compressors, ranging from portable pancakes to large air compressors designed for permanent placement in a commercial shop. When I got the chance to test a 10-gallon Fortress model—a Harbor Freight air compressor—I was excited to see what it could do. I’m a long-time Harbor Freight fan; I frequently duck into the company’s local store when looking for reasonably priced materials and supplies.
Ahead, find out how the Fortress performed in my hands-on tests, along with the features I liked best and the ones I think could be improved on a bit.

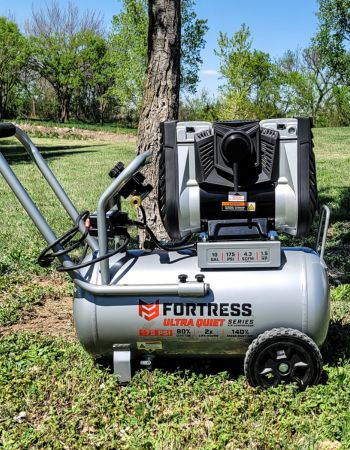

Harbor Freight Air Compressor (Fortress 10-gallon): At a Glance
Rating: 9/10
PROS
- Ultraquiet start-up and operation compared to traditional air compressors
- Easy to regulate the pressure to suit a variety of pneumatic tools
- Well suited to several projects, including remodeling, automotive work, and inflating tires
- Never-flat tires mean no need to air-up flats before rolling the air compressor
- Large handle on the front allows you to lift and roll the compressor with ease
CONS
- At 83 pounds, this model is less portable than lighter-weight compressors
- Not a quick-recovery compressor, but more than sufficient for many pneumatic needs
- Does not come with a hose—you’ll need to purchase one separately
- Exclusively sold at Harbor Freight, which may limit availability for some
Get the 10-Gallon Fortress 175 PSI Air Compressor at Harbor Freight for $319.99.
What is the Fortress 10-gallon Harbor Freight Air Compressor?
The Fortress 10-gallon air compressor is a midsize shop-type (or automotive) air compressor with a maximum pressure of 175 pounds per square inch (psi).
The Fortress is also an oil-free air compressor, which means there’s less upkeep because there’s no need to check the oil level (like I have to do with my large central pneumatic air compressor).

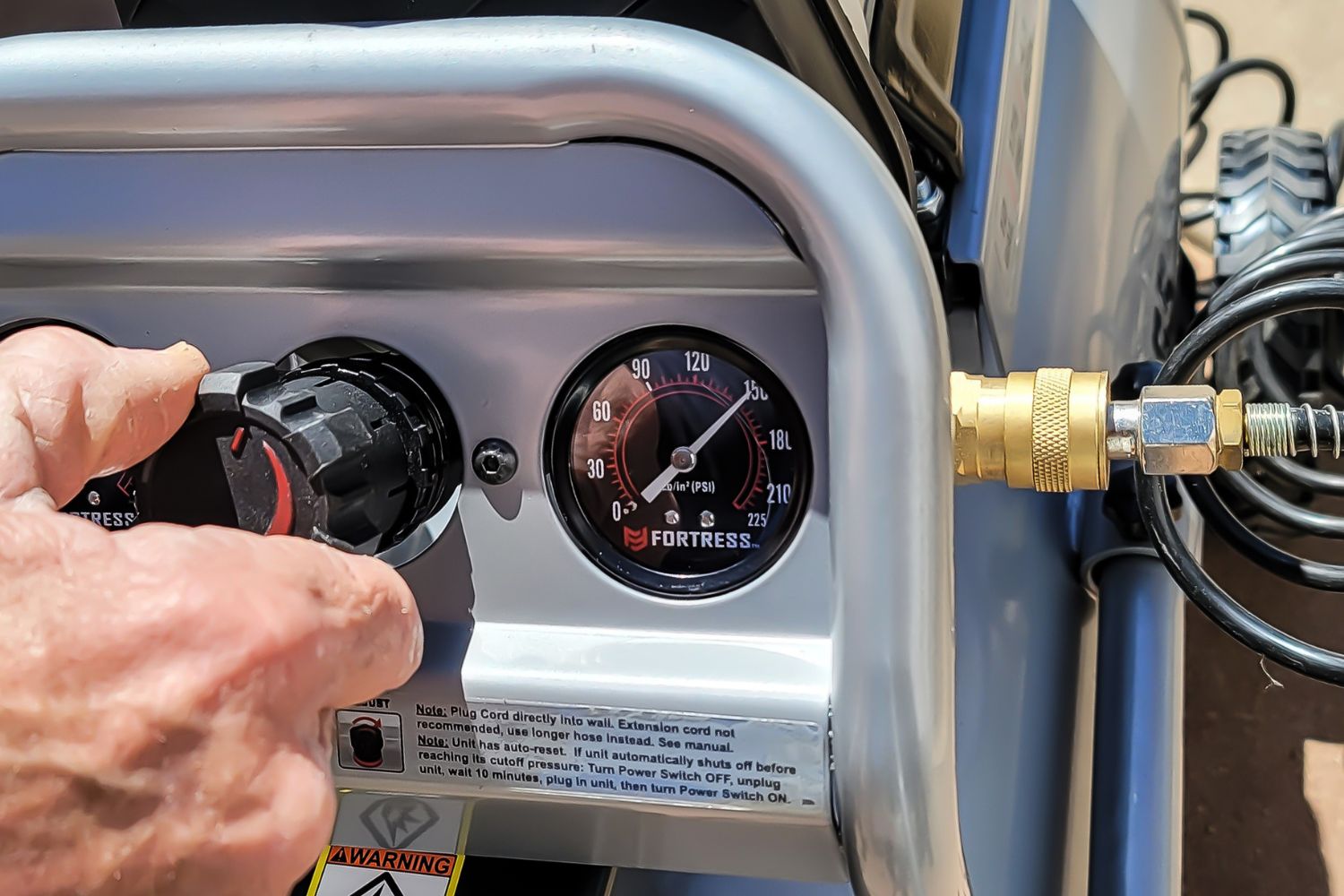

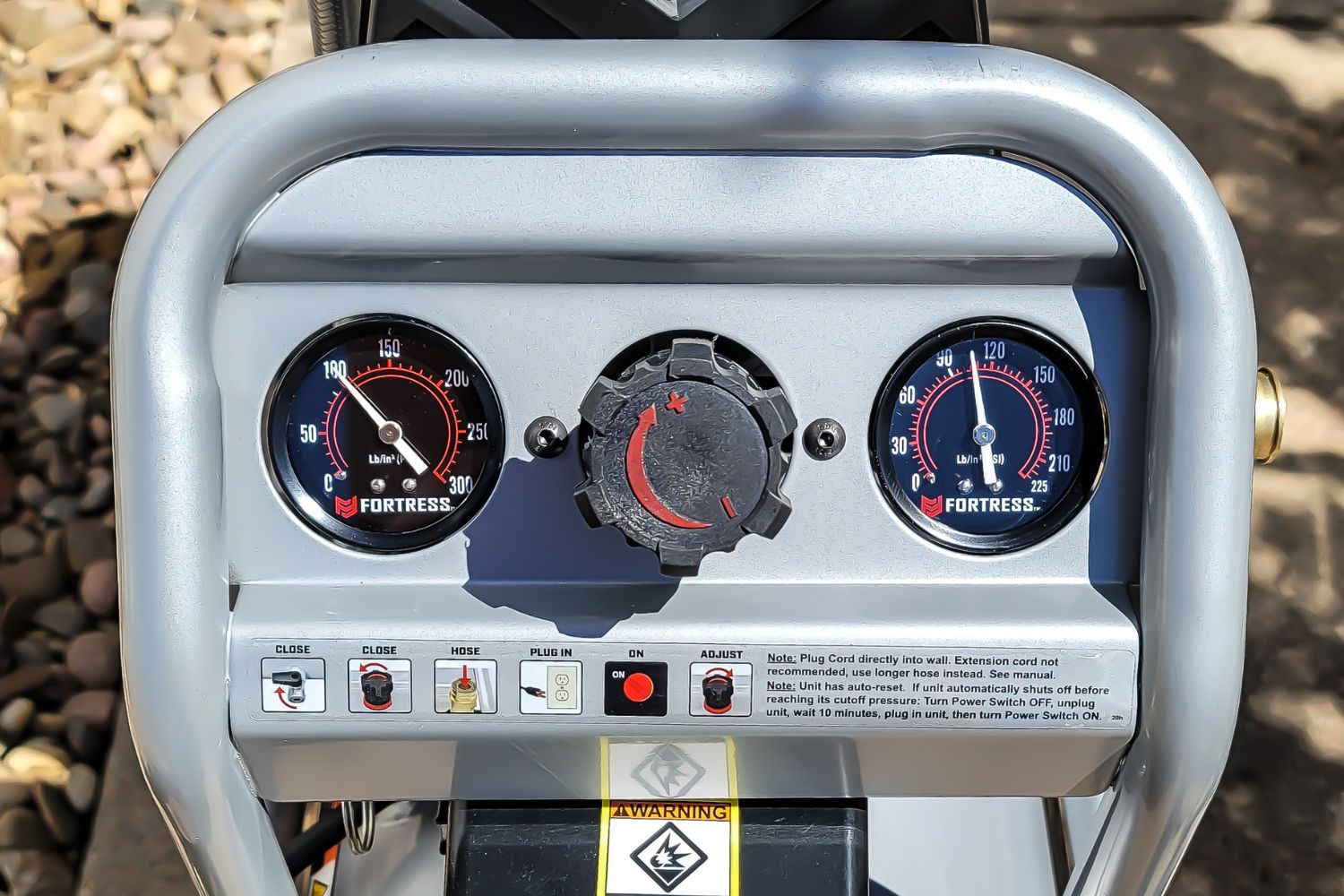

The compressor comes with two gauges: a tank psi gauge that registers the current pressure in the tank and an output psi gauge that indicates the force used to power the tools. Both gauges feature large easy-to-read numbers. The regulator dial for the output pressure gauge sits between them, and the start switch is just below that. All the controls are near one another, making it handy to use and operate the compressor.
How does this Harbor Freight air compressor compare to competitors regarding noise level?
While there’s a lot to like about this air compressor, my favorite feature is its quiet operation. As someone who’s worked around loud air compressors that have startled me every time they cycled on—once making me fall off a step ladder—I was thrilled with the soft operating sound of the Fortress. I rank it among the best quiet air compressors available today.

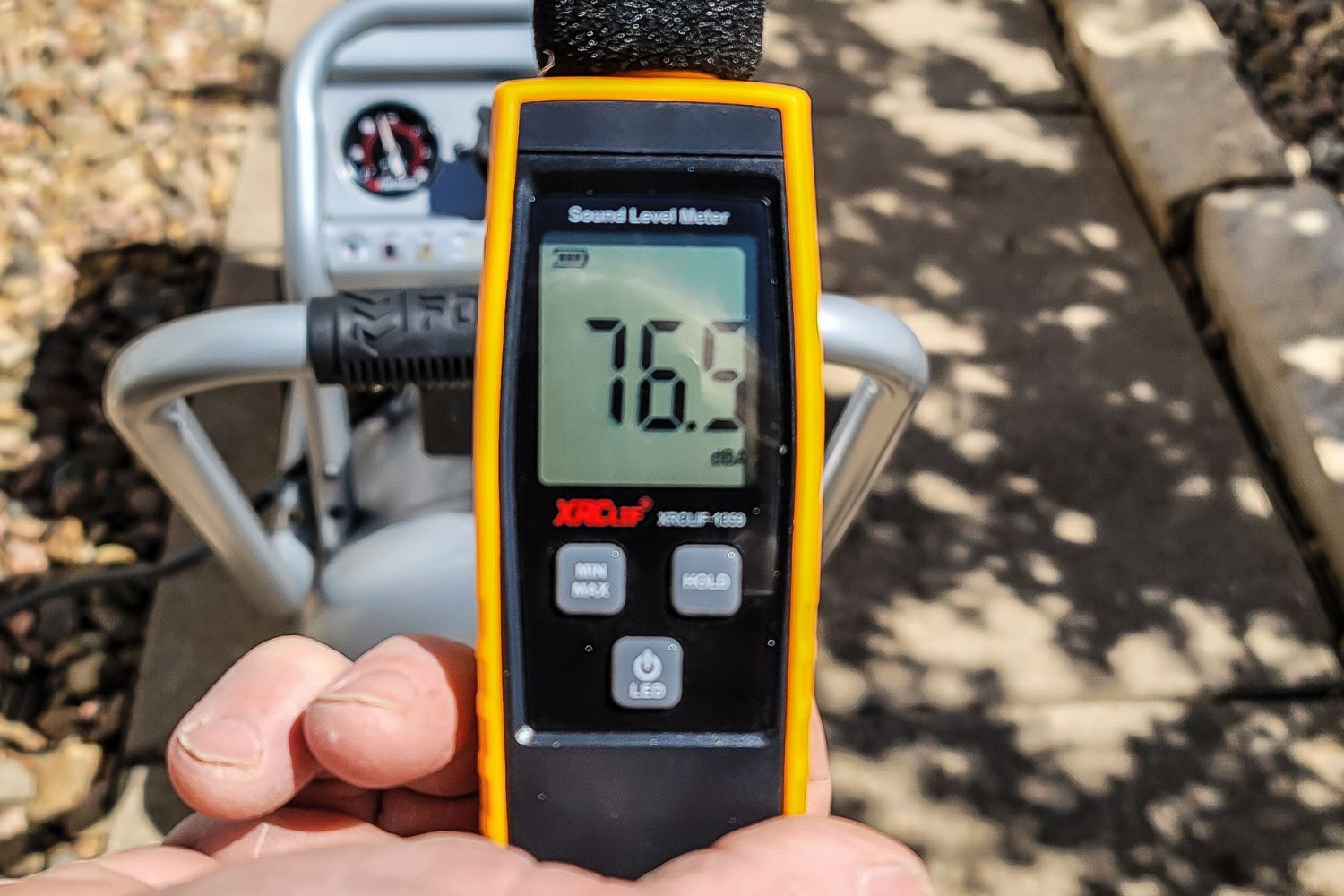

Harbor Freight lists the noise level of the Fortress at 69 decibels from 3 feet away when the compressor is cycling (filling with air). My decibel test was 76 decibels, but I measured from about 2 feet away. For comparison, 76 decibels is about the same noise level as living room music.
Just listening to the Fortress cycle, I realized it was super quiet compared to my shop compressor, but I decided to test the noise level of my shop compressor just to see how much they differed. When my shop compressor cycled on, it measured 113 decibels of sound—as loud as a live rock band!
How easy is setting up and using the Fortress air compressor out of the box?
This 10-gallon Harbor Freight compressorcomes almost completely assembled, but I did have to attach the wheels, which was simple. In the box, I found a nut, a washer, and an axle bolt for each wheel. I did have to use my own wrench to attach the wheels because Harbor Freight doesn’t include one, but most DIYers will have a selection of wrenches for such purposes.
The only other thing I had to do was adjust the handle. The compressor ships with the handle pushed all the way in, but it’s easy to pull out by loosening the nuts that hold it in place, pulling the handle out, and then replacing the nuts.
The manufacturer recommends a break-in period before using the compressor that consists of making sure the compressor is off and then opening the drain plug, which is located on the bottom side. Then the instructions directed me to turn the compressor on with the drain plug still open, letting it run for about 30 minutes. After that, I switched it off, closed the drain plug, and the Fortress was ready to go.

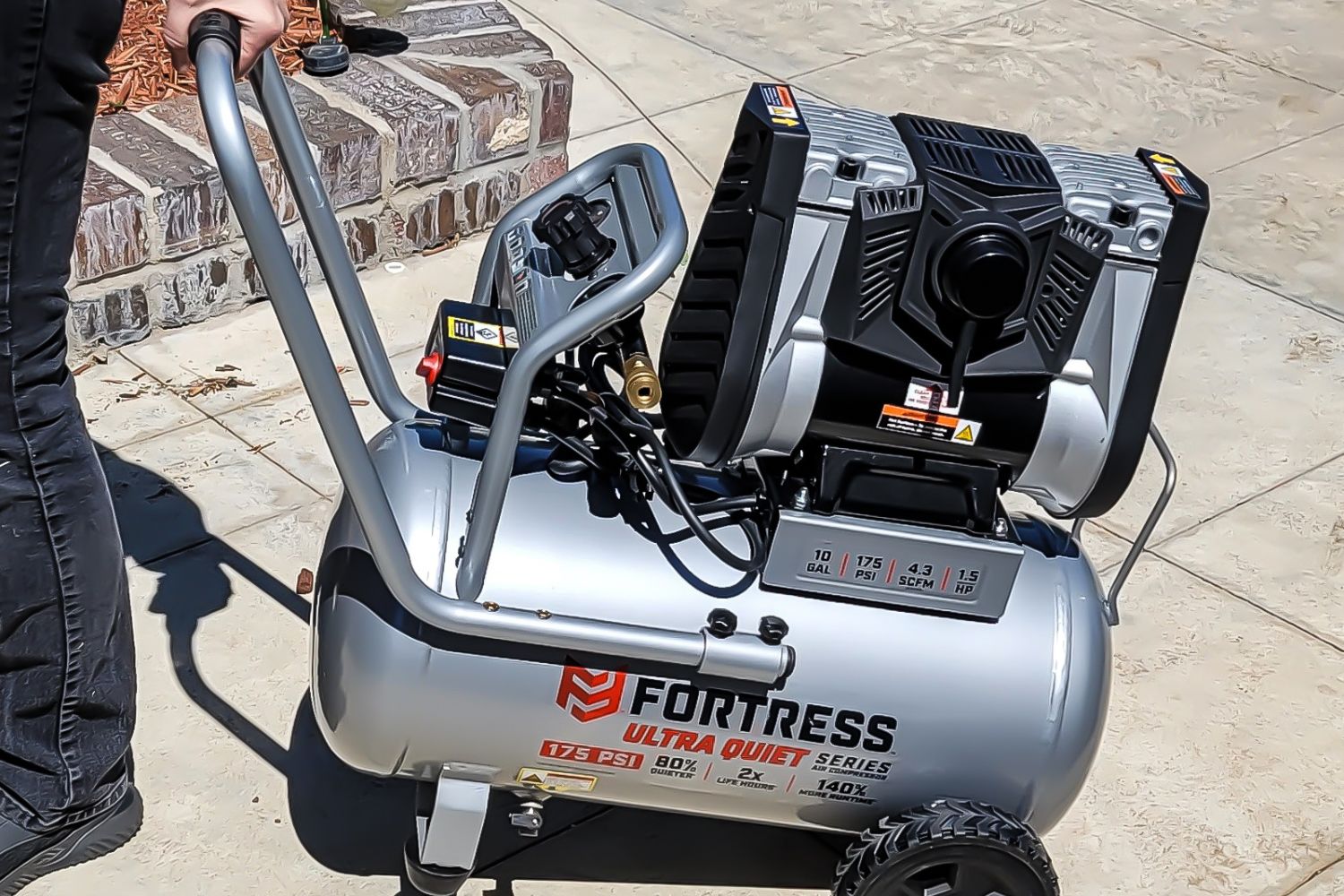

How portable is this Harbor Freight air compressor?
The Fortress is what I would consider to be a semiportable model. It comes with large 7-inch flat-free tires and an outsized handle, making it easy to lift the front and roll the compressor from spot to spot. But it weighs a hefty 83.3 pounds, which makes it challenging for some users (like me) to lift the whole thing to the back of a pickup bed. Still, this Harbor Freight air compressor is well suited for use in a garage or workshop, where it can be rolled around or pulled out on a driveway for easy use.
Compressor portability also relates to the length of the extension cord used to power the compressor. The Fortress should be plugged into a heavy-duty extension cord (10 or 12 gauge) for best results. The longer the cord, the heavier the cord gauge should be. As a general rule of thumb, an extension cord that’s 50 feet long should be at least 12 gauge. A 100-foot extension cord should be 10 gauge. (Remember, when it comes to gauge, a smaller number means a heavier gauge.)
Folks can also increase the usable range of this Harbor Freight air compressor by using a 50-foot air hose instead of a standard 25-foot hose. An air hose is not included with this Harbor Freight air compressor, but standard air compressor hoses with ¼-inch connectors are readily available at hardware stores and home improvement centers.

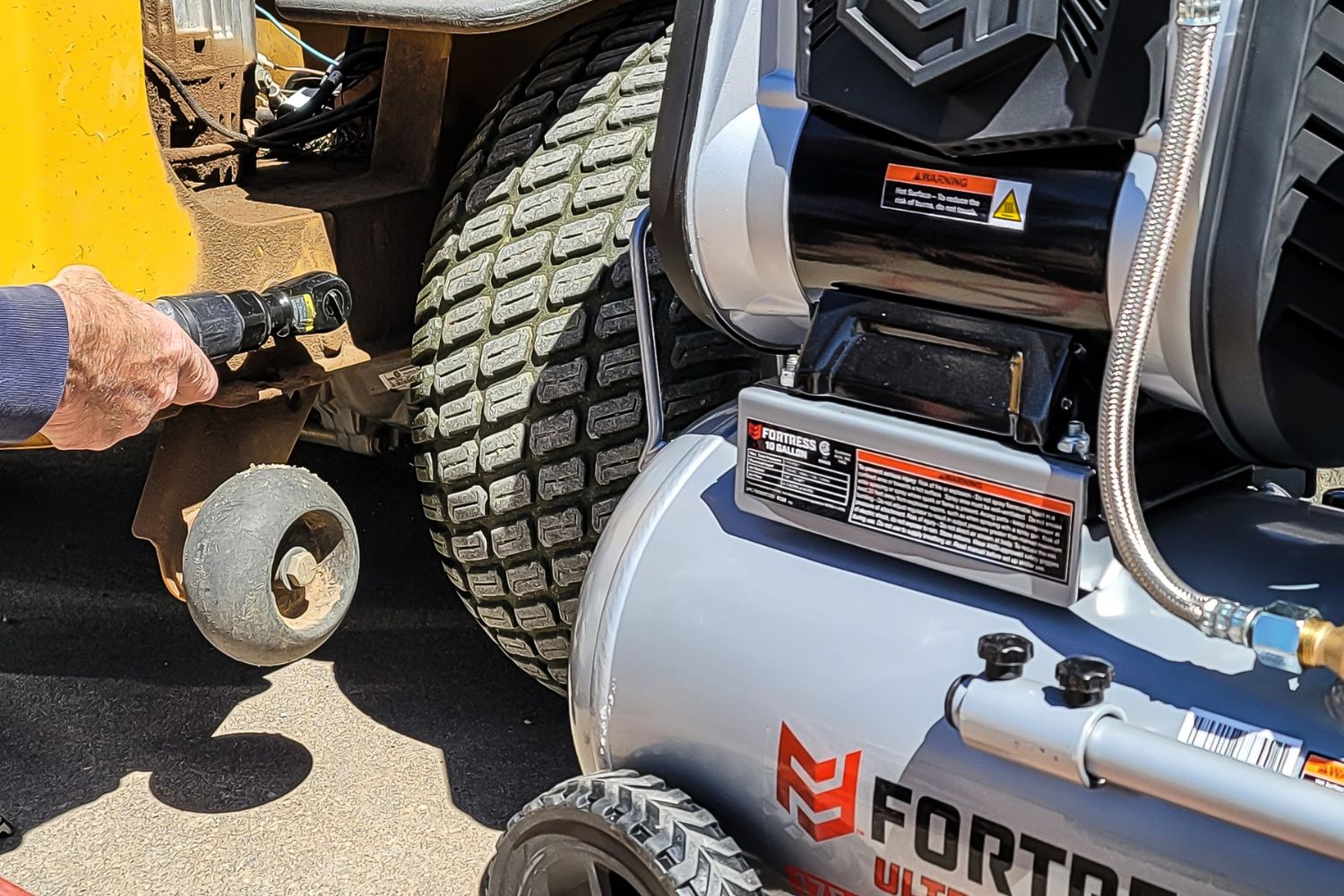

What care and maintenance are necessary with this Harbor Freight air compressor?
As an oil-free air compressor, this unit is easy to maintain, but the tank should be drained after every use. Fortunately, this is as simple as twisting the drain valve on the bottom side of the tank when you’re done using it. With use, moisture can build up in an air compressor tank, and if it isn’t released via the valve, it can lead to corrosion within the tank. This simple step takes just a minute and is well worth the effort.
Other maintenance concerns are mostly just common sense. Check periodically to ensure nuts, bolts, and hardware are snugly attached, and tighten them up if they come loose. Check the air filter monthly—more often than that if you’re using the compressor in a dusty environment—and replace the filter if it shows heavy dirt accumulation. Keep the compressor clean by wiping off dirt or grime with a damp rag.
What pneumatic tools are suitable for use with this air compressor?
This Harbor Freight air compressor delivers air pressure at the rate of 4.3 standard cubic feet per minute (SCFM) at 90 psi. Many pneumatic tools call for 90 psi of pressure, so 90 is often used as a standard when rating compressors.
Its SCFM rating puts it in the light-to-medium duty category for air compressors. You don’t have to know how to calculate airflow at various psi settings; you only have to look on the body of the pneumatic tool you’re using to find the recommended pressure and then adjust the regulator dial on the Fortress to the same psi.
I used a pneumatic stapler with a recommended 50 to 70 psi, and the Fortress provided ample power for shooting the staples into pine boards. However, when I attached my professional spray gun, which calls for 90 to 100 psi, the compressor didn’t generate enough airflow to provide a uniform spray; I ended up with a few drips after using the spray gun for about 5 minutes. That happened because my spray gun was using up the air in the tank faster than the Fortress could replenish it, so I started to lose spray pressure.
The Fortress cycles on to fill the tank with air when the tank pressure drops below 135 psi. It continues pumping air into the tank until it reaches 175 psi. I timed the refill cycle at about 45 seconds without using any tools. It took longer if I continued to use my tools, meaning I was using up the air as it was filling. When using a high-powered paint spray gun, the pressure dropped below 135 psi, and while the Fortress pump kicked on, it never reached 175 psi. Instead, it shut off because I was pulling air out of the tank more quickly than the pump could replenish. I had to stop spraying to let the tank catch up.
The Fortress is a good air compressor for basic workshop and automotive tasks, but as a light-to-medium duty model, it’s not well suited to continual use by such tools as paint sprayers and framing nailers. These tools pull more air more quickly than this air compressor can recover.
Is the 10-gallon Fortress the right Harbor Freight air compressor for you?
If you’re looking for a light-to-medium-duty air compressor for a woodworking shop or garage, this high-quality Harbor Freight air compressor might be just the ticket. It comes with ample pressure and airflow to run most small pneumatic tools, and the quiet operation compared to other air compressors is a big selling point.
However, if you’re looking for an air compressor you can take from project to project, you may want a small air compressorthat’s easier to lift to the back of a truck. After testing the Fortress with several pneumatic tools, I feel it’s best suited for someone who doesn’t have to comply with a tight timeline. The Fortress is not a fast-recovery air compressor, so if you’re looking to nail shingles on a roof rapidly, this isn’t the model for you.
Where to Buy the Fortress 10-gallon Harbor Freight Air Compressor
Get the 10-Gallon Fortress 175 PSI Air Compressor at Harbor Freight for $319.99.
Meet the Tester
Glenda Taylor is a product tester and writer specializing in the construction, remodeling, and real estate industries. She and her husband own a general contracting company, and Taylor is experienced in both residential and commercial building applications. She tests a wide range of power tools as well as other home improvement, household, and lawn-and-garden products.
